Embedded DisplayPort TFT-controller with ePD Interface

Experience live it at the "embedded world 2020" in Nuremberg from February 25-27

Beside LVDS and V-by-One, embedded DisplayPort (eDP) is a common display-interface. Due to higher data rates (up to 5.4 Gbit/s) and the combination of the usually separated interfaces for video- and backlight-signal transmission, it is possible to drive eDP-displays with a single cable. The standardized connector, which is used at compliant displays as well as on DCMR-62, helps users to easily design eDP products in their sytem without the need of creating complex cables.

Technical Specification

Input Interface: DisplayPort 1.2
Output Interface: eDP (Embedded DisplayPort) HBR
Max. Resolution (HxV): 1920 × 1200 pixels (WUXGA)
Power Supply: 12V / DC
Power Consumption: 1.5 W
Dimensions (WxDxH): 90 × 70 × 9 mm
Weight: 27 g
Operating Temperature: 0 ~ +70 °C

For further information, customized or even new designs, contact your sales-partner or use the contact form on our website.

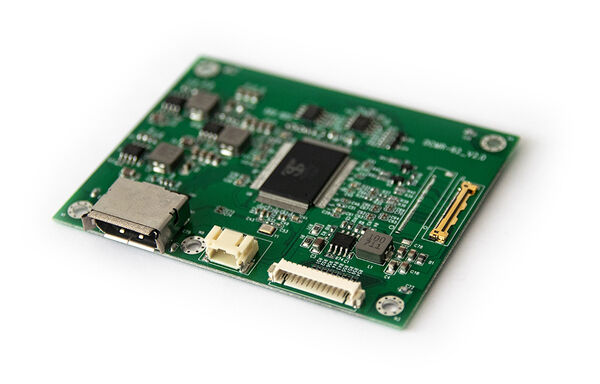

DCMR-62 TFT Controller

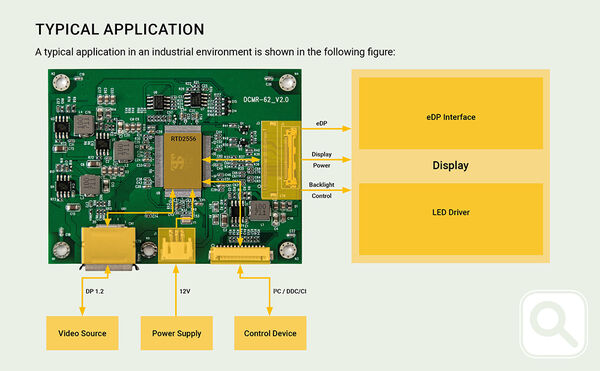

Typical Applications DCMR-62
