TFT Controller

BECK Elektronik Bauelemente

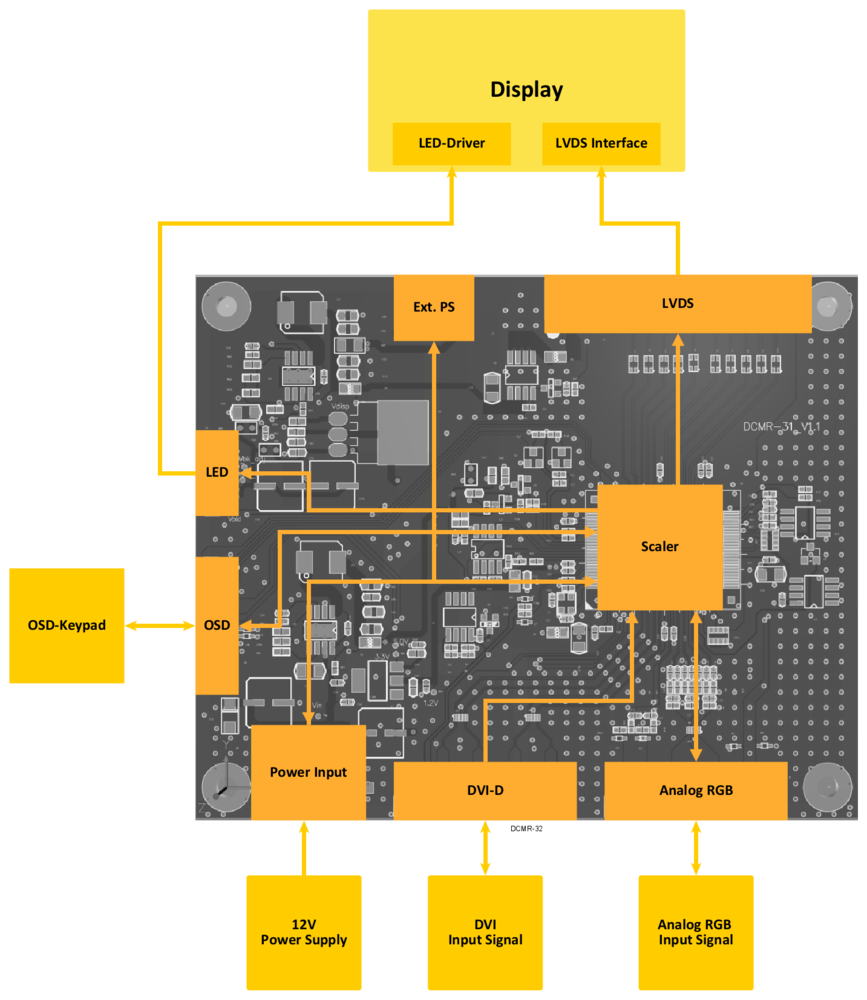

The DCMR-series of TFT-controllers with LVDS-Interface are available in different sizes and shapes. This series is available in a flat version with external connectors or as all-in-one version with Display Port-, DVI- and VGA- Interface to suit your specific design. These controllers come pre-configured and do not need to be modified before usage.

Type Input Signal Output Signal Resolution max. (X*Y) Voltage (V) Outline (H*V, mm) Remark Image

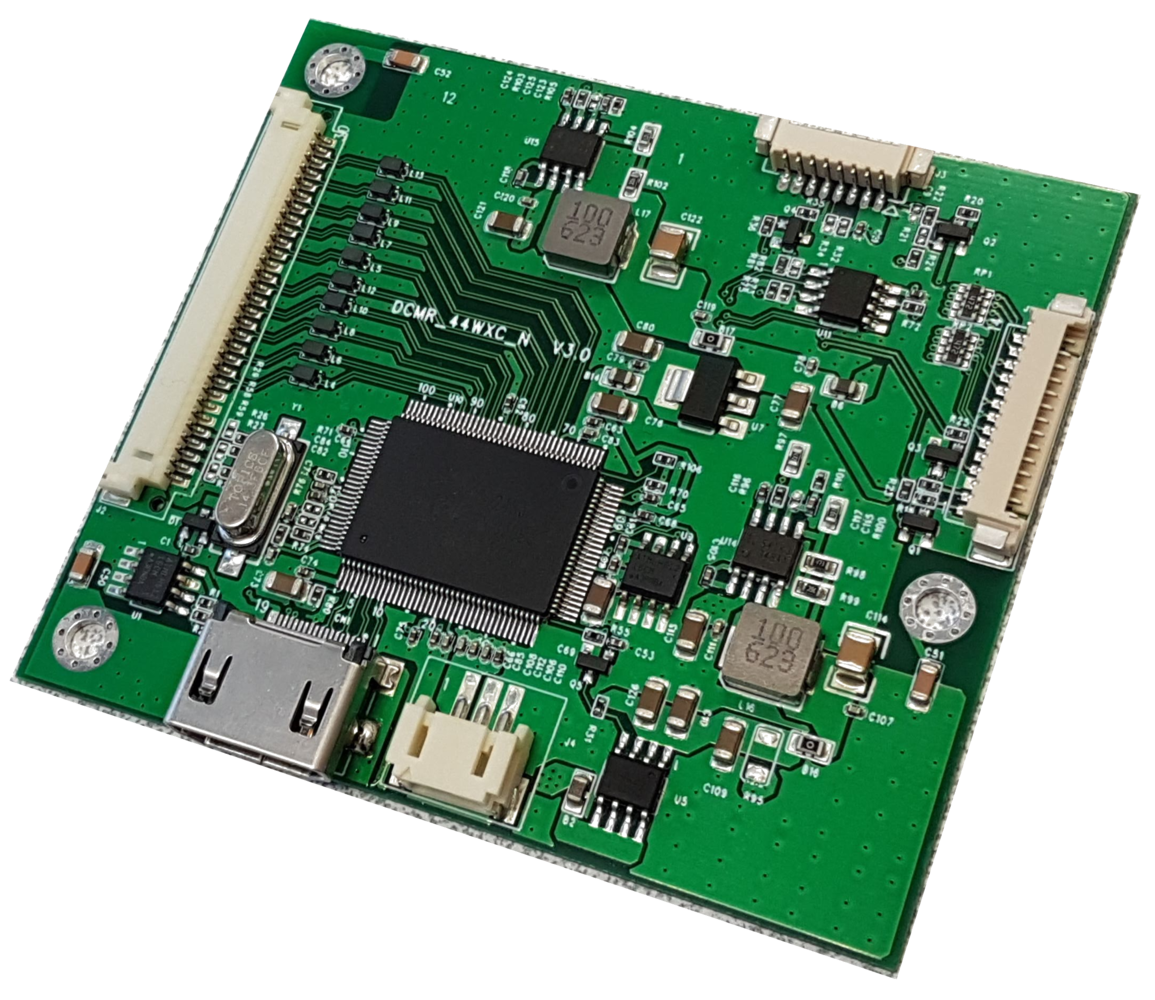

DCMR-20
HDMI
LVDS 1920*1200
3.3 / 5.0 / 12.0

80*70

Extra small size kit


View picture

Download
DCMR-30 RGB, DVI, HDMI LVDS 1680*1440 3.3 / 5.0 / 12.0 110*90 EOL, Small size kit, external connectors View picture Download
DCMR-35 RGB, DVI, HDMI LVDS 1920*1200 3.3 / 5.0 / 12.0 110*90 EOL, Small size kit, external connectors
View picture
Download
DCMR-40 RGB, DVI LVDS, TTL 1680*1440 3.3 / 5.0 / 12.0 150*110 EOL, Medium size kit View picture Download
DCMR-44 HDMI LVDS 1920*1200 3.3 80*70 Extra small size kit View picture Download
DCMR-45 RGB, DVI LVDS, TTL 1920*1200 3.3 / 5.0 / 12.0 150*110 EOL, Medium size kit View picture Download
DCMR-60 RGB, DVI, DisplayPort LVDS 1920*1200 3.3 / 5.0 / 12.0 150*110 Medium size kit View picture Download
DCMR-61 DisplayPort LVDS 1920*1200 3.3 / 5.0 80*74 Extra small size kit View picture Download
