Full Color 27" LED-Display "Cabinets"

Mini RGB LED Packages on a PCB

Full color LED display modules from Yenrich Technology Corporation (Yenrich), part of the Ennostar Group, are a matrix of individual 4in1 mini RGB LED packages on a specially designed PCB.

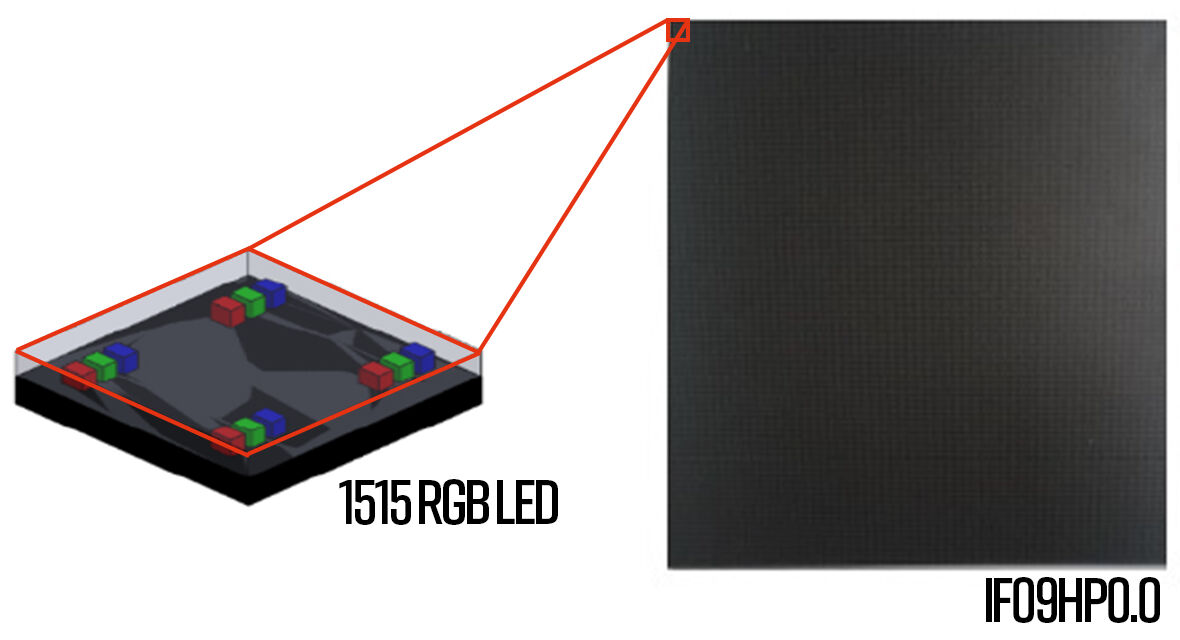

The product, named IF09HP0.0, is an LED matrix with 160x180 pixels and a pixel pitch of < 1mm (Figure 1).

D09NWG0.0 "Cabinet"

This modular design of the IF09HP0.0 can be extended as required, for example 3x2 IF09HP0.0 modules can be used to create the D09NWG0.0

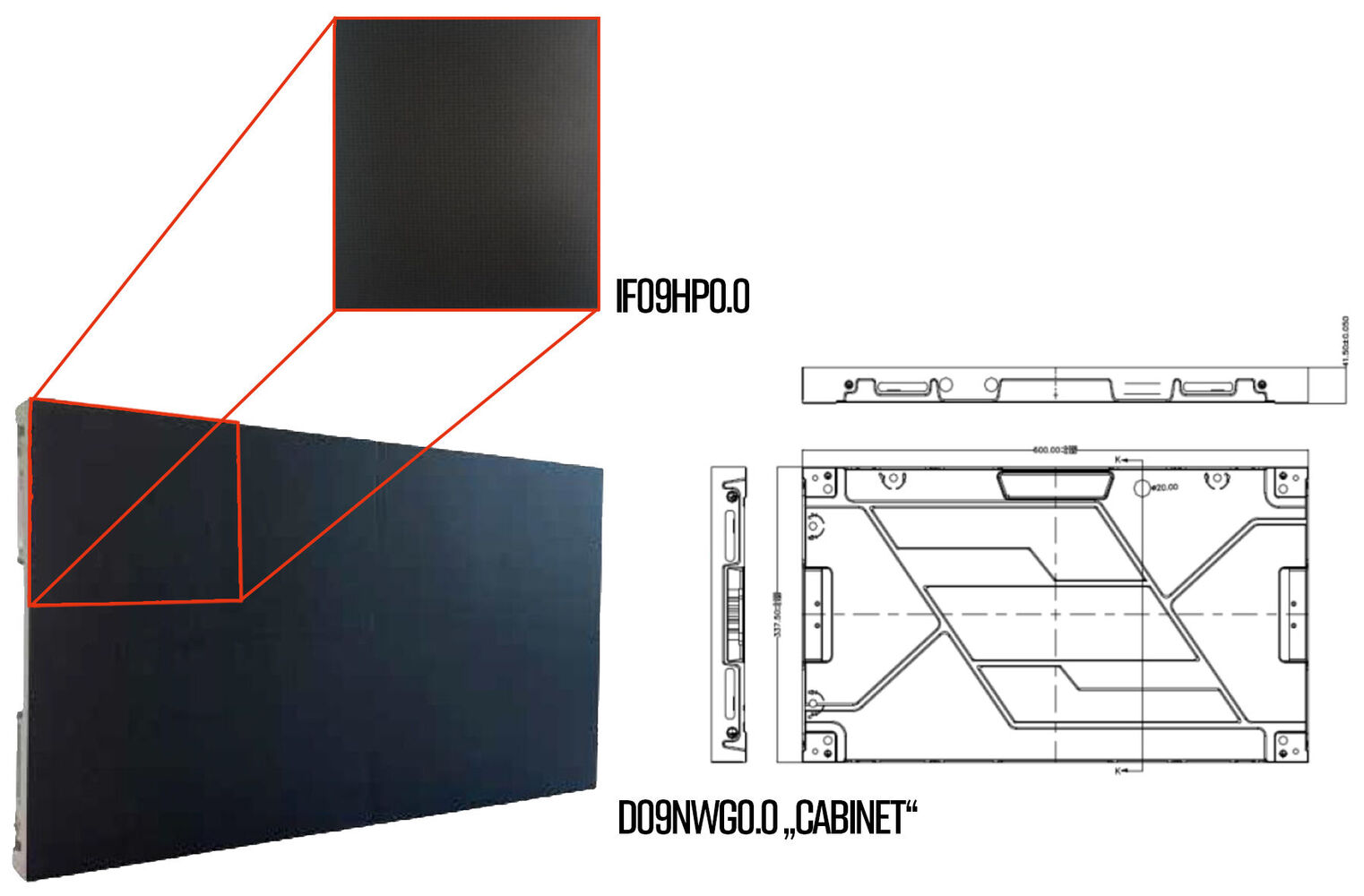

"Cabinet" with a resolution of 640x360 pixels and a size of 27 inches (600x337.5x45 mm) (Figure 2).

Preliminary product infromation at 25°C
Cabinet weight 7 Kg
Brightness 0 – 1000 cd/m²
Viewing angle > 160°
Contrast 10000 : 1
Power consumption 200 W/m²
Supply voltage 100 – 240 V
Frame Rate 60 Hz

External Video Controller

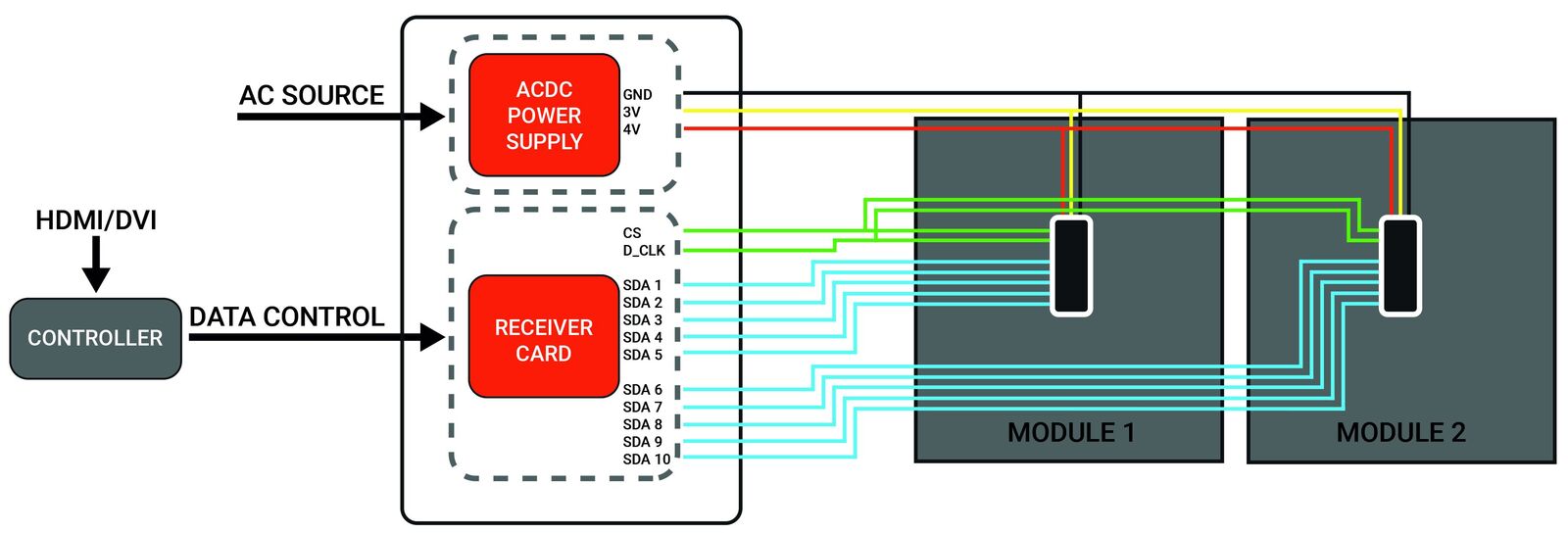

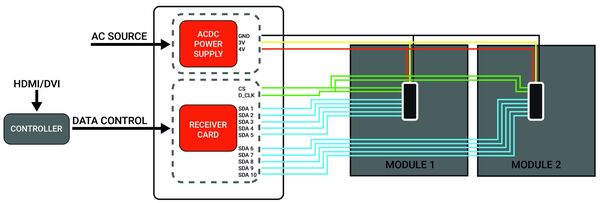

In contrast to a normal TFT, where the entire image content is passed on to the display controller, theCabinet requires an external video controller to display an image (Figure 3).

This video controller divides the image to be displayed into individual segments corresponding to the LED modules (IF09HP0.0) and controls these individually in order to display the overall image on the Cabinet (D09NWG0.0).

Expandable Cabinets

These cabinets are also expandable and can be seamlessly connected to create a gapless viewing area.

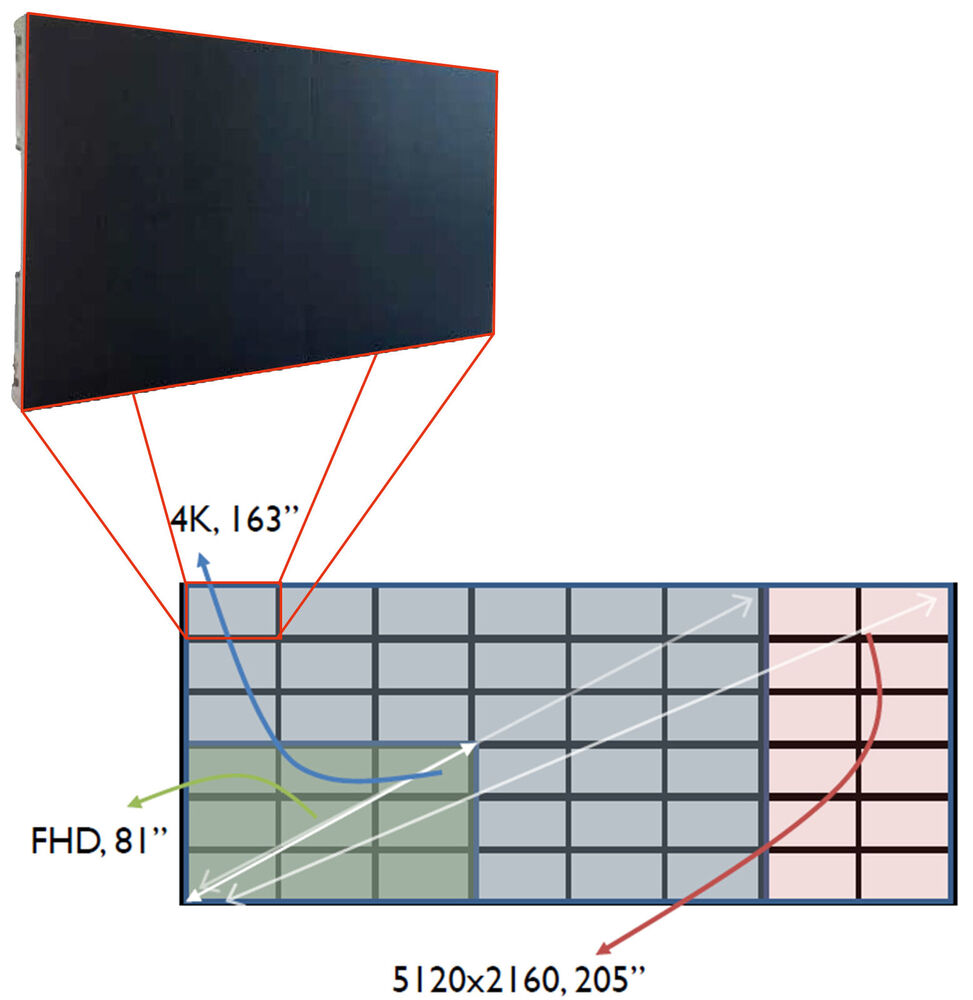

For example, video walls of 3x3 cabinets can combine to create full HD resolution with a gigantic screen diagonal of 81" (2.05m), 4K resolution at 163" (4.14m) or even more (Figure 4).

The company Yenrich is a leading company of Multi Color LEDs from Taiwan and is represented in Europe by the company BECK Elektronik Display GmbH, the group of companies BECK.

Cabinets as well as the external video controller including power supply are available through the company BED from Nuremberg.

For further information, please feel free to contact your contact person in our company at any time or write to info@beck-elektronik[dot]de.
